New Product Introduction- 3D-Radar DXV Antenna Array

發(fā)布時間：2020-10-16 瀏覽次數(shù)：4612 來源：歐美大地

The next generation of GPR equipment

Introducing - The DXV Antenna Array

A Game-changer for the GPR Community Combining Unique Depth Penetration With Superior Detail Resolution.

The next-generation DXV Antenna Array is designed for unique performance in locating deep utilities and pipelines, sink holes, voids, geological features and deep subsurface structures. The antenna series is the ultimate geophysical tool for large-scale utility mapping. It provides understanding of the deeper subsurface like never before.

? Deeper subsurface Imaging

A superior combination of high-resolution imaging and depth capabilities.

? Optimized performance

Improved performance in poor ground conditions and exceptional performance in reasonable to good ground conditions

? Maintains shallow resolution

Imaging at greater depth without the loss of resolution of smaller diameter objects in shallow areas that is typically experienced in low frequency pulse based GPR solutions

Key Product Features

Focused performance within lower frequency range
Improved penetration while maintaining high resolution at intermediate depth levels
Features deep penetration antenna elements - 16.4cm channel spacing
Integrated PPS receiver for improved positioning
Bandwidth – 90MHz – 1,000MHz
Enhanced signal to noise ratio
Multi-channel step-frequency array
Easy to install and to deploy

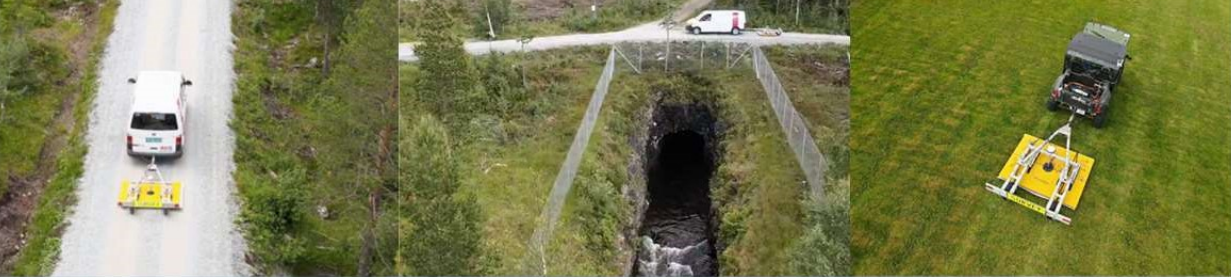

The DXV in action

Applications

ANY size deep data collection requirement	Utility Mapping – Deep Pipelines, Sewers
Voids and sink holes	Dikes and levees
Geological stratigraphy	Mining & Quarrying
Geotechnical & Environmental	Forensics & Archaeology

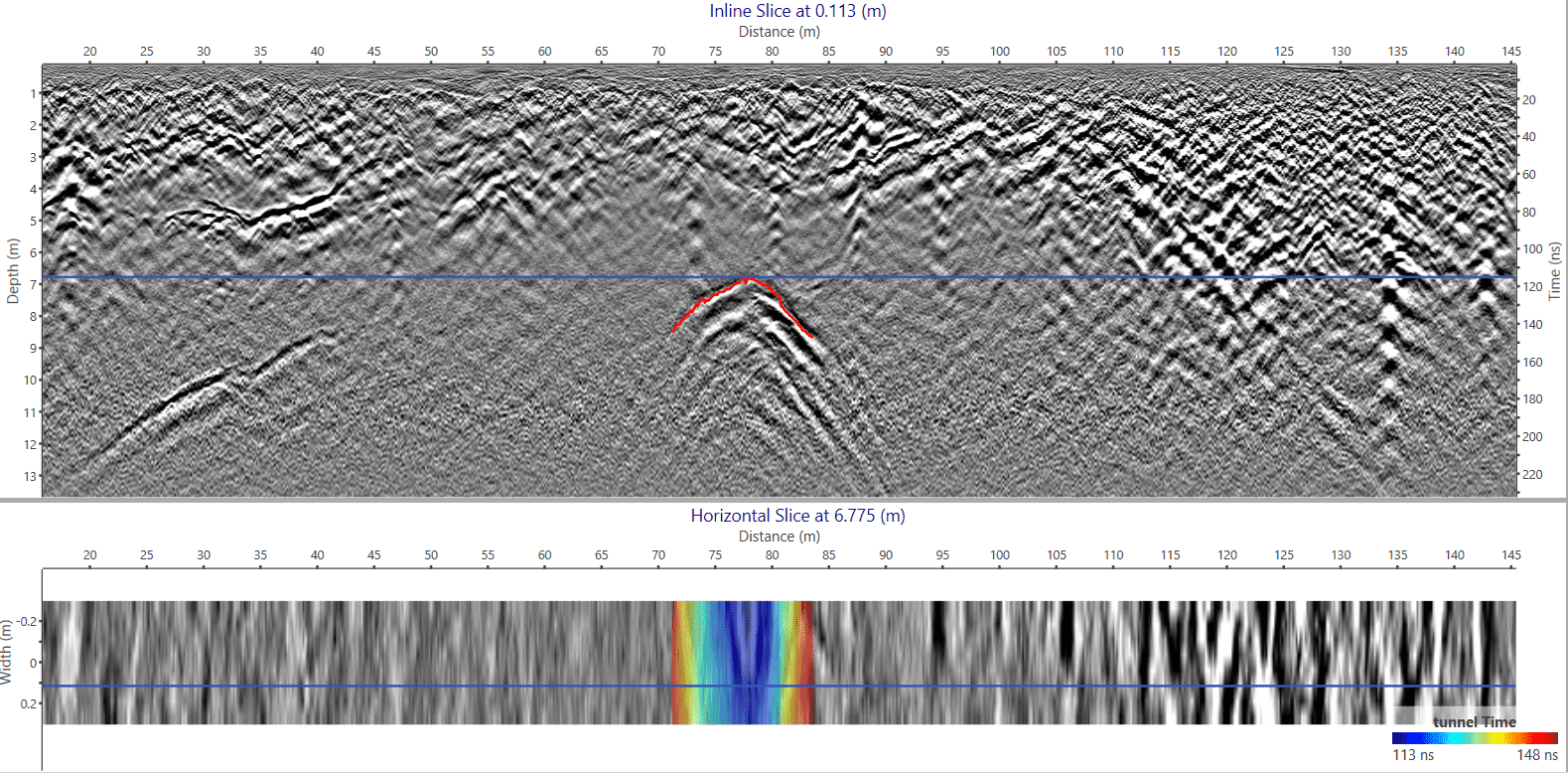

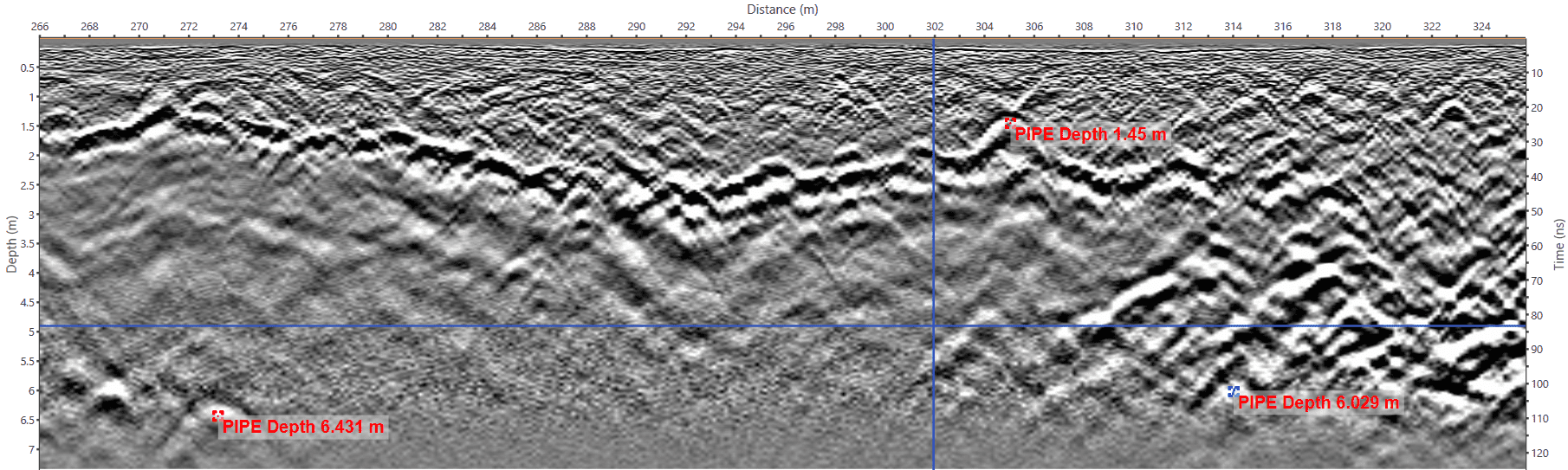

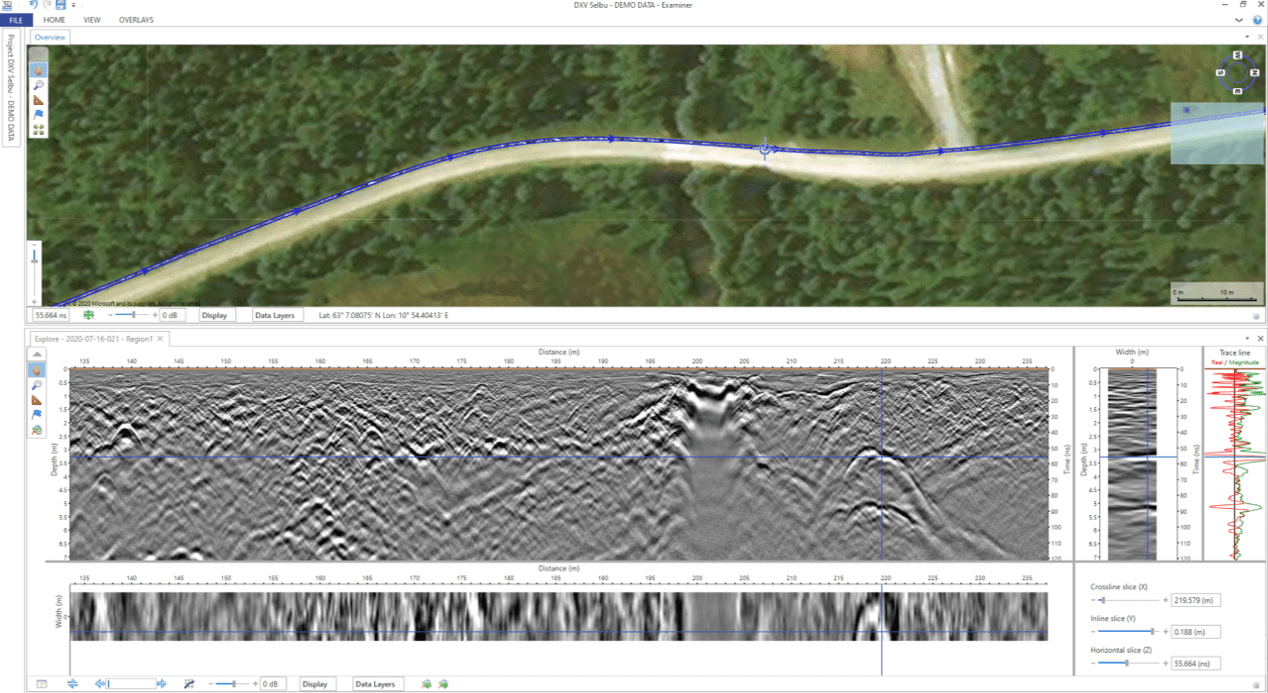

Data examples in Examiner 3 software

For more information, please contact Earth Products China Limited .
Service hotline: 400-700-9998
Email: marketing@epc.com.hk
Official website: en.epccn.com
